split solar water heater

Price: 189.0~1899.0 USD
Payment Terms: T/T,L/C,D/A,WU,
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: HJHP-
Production Capacity: 3000sets/month
Delivery Date: 14days
Type: Pressurized
Brand Name: Ontek/OEM
Means of Transport: Ocean,
Packing: carton for container order,...
Application: Water Heater
Pipe Material: Glass

1. Experienced solar water heater supplier
2. Logo :Ontek/OEM offered
3. Warranty: 5 years guarantee
4. Design:High quality & good price

Water tank
1.Outer tank: Color coated steel/Stainless steel/galvanized steel
2.Inner tank: SUS304-2B food grade stainless steel with thickness of 1.0mm-2.0mm
3. Insulation layer: Polyurethane foam 50mm
4.Heat preservation:72hrs
5.Hail resistance:25mm
6.Working pressure:0.6mpa
7.Water tank capacity: 100L-360L
Backet
1. Frame: Galvanized steel
2.System angle: 45 degree
3. Frame material: Galvanized steel/aluminum alloy/stainless steel
4.Accessories: Assistant tank, pump, controller, electric heater, Mag Bar, etc
5.System angle: 20-56 degree, OEM offered
6. System color: OEM offered
Vacuum tubes
1.Heat pipe: 58mm*1800mm/850mm with Red copper heat pipe/U pipe
          Vacuum tube: 47*1500mm/47*1800mm/58*1800mm/58*2100, etc
2.warranty: ≥15years
Features
1.Use heat pipe for the heat conduction and can get a high heat absorption efficiency and rapid heat transfer.
2.The pipeline is made of red copper and conducted by heat transfer medium liquid, the crust uses aluminium alloy mould material of high strength with airflow design.
3.Good anti-frozen performance, it can still work under the environment of -30 degree.
4.Match with intelligent controller and assistant electrical heater, the system can provide hot water to you anytime.
5.The insulating layer uses popyurethane bulk bubble and has a good effect of temperature preservation.

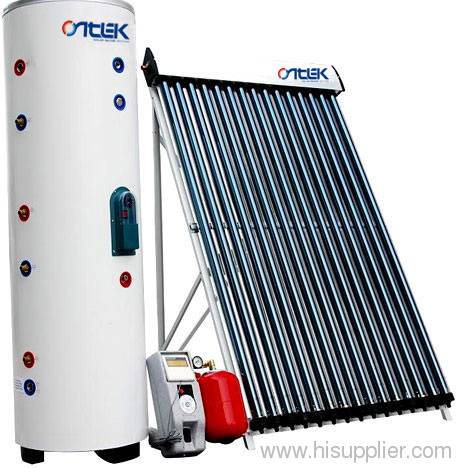

The split pressure solar water heater is a split system, where the collector is separated from the storage tank, It is flexible assembly, combined with building perfectly.The system consists of storage tank, solar collector and working stations,All the stoage tankks should be tested as tested pressure of 1.2 MPa and the working pressure is 0.6MPa. The daily efficiency is over or equal to 55%.
Solar collector gathers energy and heat the mesium material in the copper pipe, the medium transfers the heat to the water in pipeline the solar collector. When there is temperature difference (settled by customers) between the two sensors in collector and tank respectively, intelligence controller activates the circulation pump automatically,and forces the flow of heat medium in the pipeline and do heat exchange with the water inside the tank via copper coil in the storage tank.In case the temperature of the water tank does not reach T-max, then start the auxiliary heating device.
