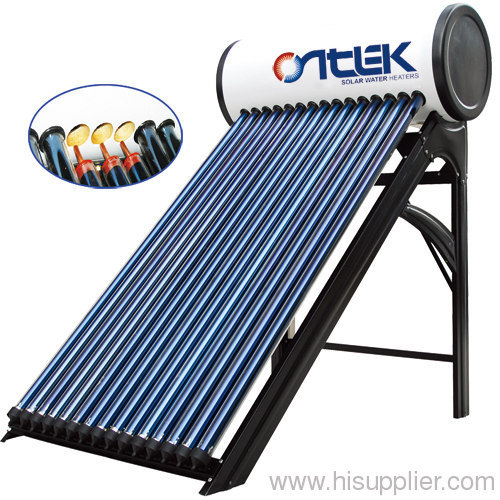

Water tank
1. Outer tank: Color coated steel, 1.0-1.2mm thickness
2. Inner tank: SUS304-2B stainless steel, 0.31-0.41mm thickness
3.Insulation layer: Polyurethane foam 30-60mm thickness
4.Working pressure: 0.6 Mpa=6 Bar
5.Water tank capacity: 100L-360L
Bracket
1.Frame: Galvanized steel/aluminum alloy/stainless steel l, 0.8-1.4mm thickness
2.System angle: 20-56 degree/OEM offered
Vacuum tubes
1.Vacuum tube: ALN/AIN-SS/CU
3.Pipes: stainless steel
4.Vacuum tube: 47*1500mm/47*1800mm/58*1800mm/58*2100, etc
Loading information
Model No | | Capacity Tank/Whole sets | Loading qty |
qty | Tube size | Tube thickness | 20GP | 40GP | 40HQ |
HJHP-BK-58/1800-12 | 12 | Φ 58X1800 | 1.6mm | 100L/130L | 64 | 123 | 155 |
HJHP-BK-58/1800-15 | 15 | Φ 58X1800 | 1.6mm | 125L/162L | 51 | 98 | 122 |
HJHP-BK-58/1800-20 | 20 | Φ 58X1800 | 1.6mm | 166L/216L | 38 | 74 | 93 |
HJHP-BK-58/1800-24 | 24 | Φ 58X1800 | 1.6mm | 200L/260L | 32 | 61 | 77 |
HJHP-BK-58/1800-30 | 30 | Φ 58X1800 | 1.6mm | 250L/325L | 25 | 49 | 62 |
HJHP-BK-58/1800-36 | 36 | Φ 58X1800 | 1.6mm | 300L/390L | 21 | 41 | 51 |
Working Principle of vacuum tube type solar water heater
Solar water heater is all
glass vacuum tube, heat preservation water tank, bracket three parts. The core component is the all-glass vacuum collector tube, which consists of two concentric circle of the special hard glass tube borosilicate composition, and the inner wall of glass vacuum coating process by magnetron sputtering coating, the coating on the sun Selective absorption of light, its absorption ratio ≥ 0.92, emission ratio ≤ 0.09 (80 degree), with a high absorption rate and low emissivity. Vacuum tube to absorb solar radiation into heat energy, the use of water density than cold water, cold water sink, hot water up the characteristics of the formation of cold water in the
vacuum tube from top to bottom, bottom of the natural water cycle The temperature of the entire water tank to gradually increase, reach a certain temperature
